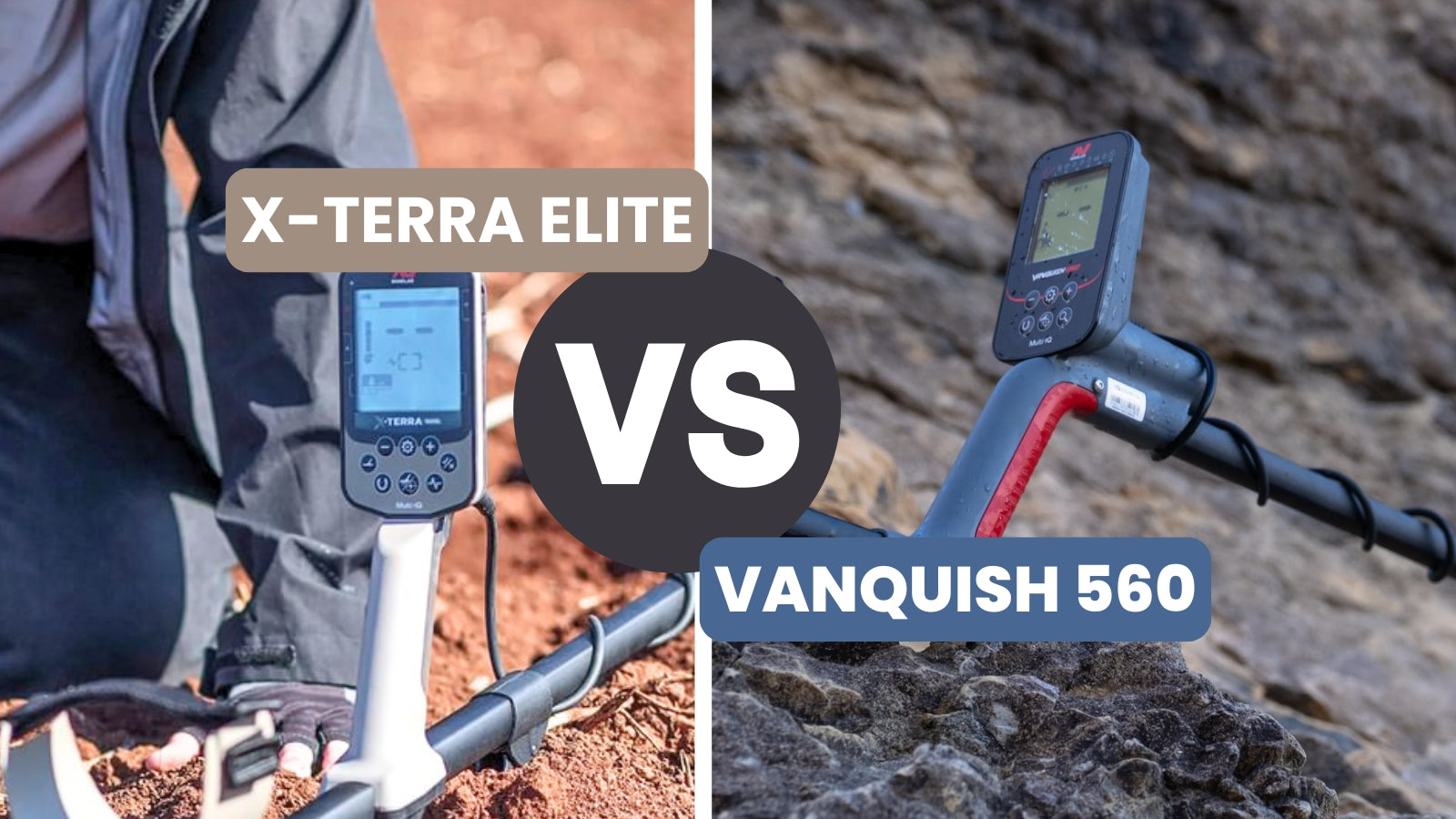

X-TERRA ELITE vs VANQUISH 560: The Four Differences That Matter

On paper, the Minelab X-TERRA ELITE and the Minelab VANQUISH 560 look like the same detector wearing different clothes. Both run Multi-IQ simultaneous multi-frequency. Both are IP68 waterproof to 5 meters. Both ship with a 12 x 9-inch Double-D coil, a rechargeable lithium-ion battery, a built-in flashlight, handgrip vibration, and a 3-year Minelab warranty. Both carry the same $479 list price, and both are regularly discounted below it.

So the real question isn't "which one is better." It's what are you paying the difference for, and will you actually use it? That's what this comparison is about.

The Short Version

• The VANQUISH 560 is the faster machine to learn and the lighter one to swing. It makes good decisions for you.
• The X-TERRA ELITE gives you roughly four times the target ID resolution, adjustable recovery speed, more sensitivity granularity, and a single-frequency option. It lets you make the decisions.
• If you detect a handful of weekends a year in parks and on beaches, the 560 is plenty of detector.
• If you hunt old, iron-littered ground or you're the type who reads the manual twice, the ELITE will keep rewarding you for years.

Start With What They Share

It's worth being clear about the common ground, because it's substantial and it means neither machine is a compromise on fundamentals.

Multi-IQ. Both transmit multiple frequencies at once rather than one at a time. In practical terms, that means a low-conductor like a thin gold ring and a high-conductor like a silver quarter both produce a clean, stable signal on the same swing. It's also what lets either detector work in wet salt sand without the constant falsing that plagues single-frequency machines.

Waterproofing. IP68 to 16 feet on both. That covers surf hunting, creek walking, and wading up to your chest. Neither is a dive machine, but neither needs to be for the hunting most people do.

Ergonomics and build. Rechargeable internal battery, red backlit display for low light, backlit keypad, built-in flashlight, vibration feedback through the handgrip, and a collapsible shaft. Both are genuinely well-built for the money.

Coil. The same 12 x 9-inch elliptical DD footprint. This matters more than people realize — it means depth and ground coverage out of the box are broadly comparable. The differences below are almost entirely in the processing, not the physics.

The Four Differences That Actually Matter

1. Target ID Resolution: 119 Segments vs 30

This is the single biggest gap between the two machines, and it's the one most buying guides skip past.

Target ID is the number your detector shows you when it finds something — a rough estimate of the target's conductivity. The VANQUISH 560 sorts targets into 30 discrimination segments. The X-TERRA ELITE sorts them into 119.

Why that matters in the dirt: on the 560, a nickel, a small gold ring, and a chunk of aluminum can all land on or near the same number. You dig all three, or you skip all three. On the ELITE, those same three targets spread out across a much finer scale, and after a season of digging you start recognizing which narrow band your local trash lives in and which band the good stuff occupies.

Higher resolution doesn't make targets deeper. It makes them distinguishable. In a clean park with light trash, you may not notice. In a hundred-year-old picnic grove with a century of pull tabs in it, you will notice on the very first hunt.

2. How Much Control You Get

The 560 gives you 10 sensitivity levels and 4 iron bias levels. The ELITE gives you 25 sensitivity levels, iron bias from -1 to 2, and — importantly — adjustable recovery speed.

Recovery speed is how quickly the detector resets after one target so it can report the next one. Slow recovery gets you maximum depth in clean ground. Fast recovery lets you pull a coin out from between two nails. The 560's recovery is fixed at a sensible middle setting. The ELITE lets you move it, which is the difference between a detector that handles most sites and one you can aim at a specific site.

The ELITE also lets you drop out of Multi-IQ and run a single 15 kHz frequency. That's a niche tool, but a real one — it's useful when electrical interference is wrecking your threshold, or when you want a bit more punch on small, low-conductive targets like thin gold.

3. Search Mode Architecture

The VANQUISH 560 gives you Park, Field, and Beach, plus one customizable User Profile you can save your own settings into.

The X-TERRA ELITE gives you Park, Field, and Beach as well — but two independently customizable profiles inside each one, for six saved setups total. In practice that means you can keep a "clean grass, go deep" profile and a "trashy, go fast" profile inside Park mode, and switch between them with a button instead of rebuilding settings by hand.

If you hunt one or two site types, this is irrelevant. If you hunt a school field on Saturday morning and a saltwater beach on Saturday afternoon, it's the feature you'll use most.

4. Weight and Runtime — And Yes, the 560 Wins One Here

The VANQUISH 560 weighs 2.6 lbs. The X-TERRA ELITE weighs 2.9 lbs. Three-tenths of a pound sounds trivial, and for a two-hour hunt it is. Over a six-hour day, held out in front of you at the end of a shaft, it's noticeable — particularly for younger detectorists, older detectorists, and anyone with elbow trouble.

Runtime flips the other way: the ELITE's larger 5100 mAh battery runs roughly 12 hours to the 560's 10. Both are all-day machines. Neither will strand you.

How This Plays Out Site by Site

Modern Parks and School Grounds

Mostly a wash, with a slight edge to the ELITE. Modern sites are dense with aluminum, and the ELITE's finer ID scale plus adjustable recovery speed helps you skip trash faster. But the 560's Park mode is genuinely well-tuned, and a patient hunter will clean out a park with either. If this is 90% of your hunting, buy on price and weight.

Old Homesteads, Cellar Holes and Iron-Heavy Ground

Clear win for the X-TERRA ELITE. This is exactly the environment its extra controls were built for. Iron-saturated soil is where recovery speed adjustment stops being a spec and starts being the reason you go home with a coin instead of a wall of grunt. Pair it with Field mode's second custom profile set fast and tight, and the ELITE punches well above its price bracket.

Saltwater Beaches and the Surf Line

Closer than you'd expect. Both have proper Beach modes and both handle wet salt through Multi-IQ. Both are submersible to 16 feet, so both survive an unexpected wave. The ELITE's higher sensitivity granularity helps you find the highest stable setting on a noisy beach instead of jumping past it, but the 560 will hold its own in the wet sand and the towel line all day.

Creeks, Rivers and Freshwater Wading

Effectively tied. Same waterproof rating, same coil, and freshwater has none of the mineralization headaches of salt. Pick on weight and budget. Either way, get a proper waterproof pinpointer — recovering a target in flowing water without one is an exercise in frustration.

Where to Start Your Settings

Factory presets on both machines are good. These are reasonable first adjustments once you've got a few hours in.

VANQUISH 560, trashy park: Park mode, sensitivity 6–7 (raise until the threshold gets chattery, then back off one), iron bias 2, all tones on. Save it to the User Profile so you can jump straight back to it.

VANQUISH 560, wet salt beach: Beach mode, sensitivity 5–6 to start. Wet salt sand punishes high sensitivity. If you're getting erratic signals in the wash, come down two levels before you touch anything else.

X-TERRA ELITE, iron-heavy old site: Field mode, recovery speed at its fastest setting, sensitivity 16–20, iron bias 1. Slow your swing down. Fast recovery only helps if the coil spends enough time over each target to resolve it.

X-TERRA ELITE, clean pasture or plowed field: Field mode second profile, recovery speed slowest, sensitivity 20–24, iron bias 0. This is your depth setup — it will be noisier, and that's the trade.

X-TERRA ELITE, high electrical interference: Run the noise cancel first. If it's still unstable near power lines, switch to 15 kHz single frequency. You'll give up a little multi-frequency versatility and get back a usable threshold.

The Honest Case for the VANQUISH 560

There's a persistent idea in this hobby that more settings equal more finds. It isn't true. A detector you understand completely beats a detector you're still guessing at, and the 560 is a machine you can genuinely understand in a weekend.

It's lighter. It's simpler. Its presets are well-chosen. And critically, it removes the failure mode where a newer detectorist buries a good machine under bad settings and concludes the site is empty. Plenty of experienced hunters keep a 560 around as a grab-and-go or a loaner for exactly this reason.

Best fit: newer detectorists, casual weekend hunters, anyone buying for a family member or a younger hunter, and anyone who wants to spend the difference on a Pro-Find 40 pinpointer and decent digging tools instead. That's often the smarter allocation.

If you want the 560 with the small coil and pinpointer already bundled, the 560 Pro Pack adds the V8X 8-inch coil, which is the single most useful upgrade for trashy sites.

The Honest Case for the X-TERRA ELITE

The ELITE's argument is longevity. It's the machine that stays interesting after you've stopped being a beginner.

Most detectorists hit a wall somewhere in year two, when they've cleaned the easy targets out of their local sites and the remaining finds are the ones masked by iron or sitting at the edge of detection. That wall is exactly where 119 target ID segments, adjustable recovery speed, and six saved profiles start earning their keep. The ELITE doesn't just find more on day one — it gives you room to get better.

Best fit: anyone hunting genuinely old ground, detectorists who already own a simpler machine and want a real step up, and people who enjoy the technical side of the hobby.

Bundle options worth a look: the Expedition Pack with the Pro-Find 40 and backpack, or the ELITE with finds pouch if you just need the essentials. There are usually open box ELITE units available at a discount as well.

Where Each One Leads

Worth thinking about before you buy, because both sit inside a clear Minelab progression.

The VANQUISH 560 sits at the top of the Vanquish line. There's nowhere further to go within the family — your next move is a jump to the EQUINOX 700 or EQUINOX 900.

The X-TERRA ELITE sits above the X-TERRA PRO and lands close enough to the Equinox line that many ELITE owners simply never feel the need to upgrade. If you know you'll eventually want an Equinox, buying the 560 now and saving the difference is a defensible plan. If you'd rather buy once, the ELITE is the buy-once option.

You can compare the full range in the Minelab detector collection or across all brands under all-purpose detectors and water and land detectors.

Budget for the Whole Kit, Not Just the Detector

A detector alone doesn't get targets out of the ground. Whichever machine you choose, plan on:

• A pinpointer — the highest-value accessory in the hobby, full stop. It turns a ten-minute recovery into a thirty-second one.
• A proper digger and, for turf, a plug knife. Browse digging and recovery tools.
• Headphones. Both detectors have built-in speakers and both support wireless audio, but headphones reveal faint deep targets a speaker simply loses to wind.
• A smaller search coil if you hunt trash. For the 560 that's the V8X; both benefit enormously from a tighter footprint in dense iron.
• Spare parts and accessories — lower shafts and coil covers are the usual first casualties.

Common Questions

Is the X-TERRA ELITE worth the extra money over the VANQUISH 560?

If you hunt old, iron-heavy ground or you want a machine you won't outgrow, yes. If you hunt modern parks and beaches a few times a year, the 560 delivers most of the same finds and the difference is better spent on a pinpointer and digging tools.

Which one is better for beach and saltwater detecting?

Both are strong. Same Multi-IQ engine, same Beach modes, same IP68 rating to 16 feet. The ELITE's finer sensitivity control helps you dial in a noisy beach more precisely, but this is the closest matchup of any hunting style.

Can a complete beginner start on the X-TERRA ELITE?

Yes. Its presets work well straight out of the box, and you can ignore the advanced settings until you're ready. The only caution is that a beginner may not use — or notice — the features they paid for in the first season.

Which is lighter?

The VANQUISH 560, at 2.6 lbs versus 2.9 lbs for the X-TERRA ELITE. Small on paper, real over a long day.

Do both detectors work for gold prospecting?

Both will find gold jewelry, and both will find larger nuggets in mild ground. Neither is a dedicated prospecting machine — highly mineralized goldfields call for a purpose-built detector.

Are the coils interchangeable between them?

No. Vanquish V-series coils and X-TERRA ELITE coils are separate systems. Factor coil availability into your decision if you plan to expand your kit.

The Verdict

The VANQUISH 560 is the better first detector. The X-TERRA ELITE is the better last one.

Buy the 560 if you want to be finding things this weekend with minimal fuss, if weight matters to you, or if you'd rather put the savings toward the accessories that actually speed up recovery. Buy the ELITE if your sites are old and difficult, if you like understanding what your machine is doing, or if you simply don't want to be shopping for another detector in two years.

Neither choice is wrong. Both are Multi-IQ machines that will find targets a single-frequency detector walks over, and both are backed by Minelab's 3-year warranty.

Still deciding? Give us a call. We run these machines ourselves and we'd rather talk you into the right one than sell you the expensive one.
