Groundtech A2 GEO 3D Ground Scanner & Metal Detector

Unleash the ultimate in geophysical exploration with the Groundtech A2 GEO. Building upon the incredible hybrid foundation of the standard A2 model, the A2 GEO introduces an integrated Geo-Electric Resistivity System. This powerful 3-in-1 powerhouse combines a professional 3D Ground Scanner, a deep-seeking Pulse Induction metal detector, and subterranean resistivity mapping into a single, compact field instrument.

Specifically engineered for advanced archaeologists, industrial utility locators, and serious treasure hunters, the A2 GEO allows you to peer deeper into the earth to discover groundwater sources, ancient tombs, caves, and deeply buried treasure hoards while delivering pinpoint metal discrimination.

Key Features

• 3-in-1 Hybrid Geophysical System: Seamlessly switch between high-depth 3D Ground Scanning (Gradiometer), a 1 kHz Pulse Induction Metal Detector, and an advanced Geo-Electric Resistivity mapping system.

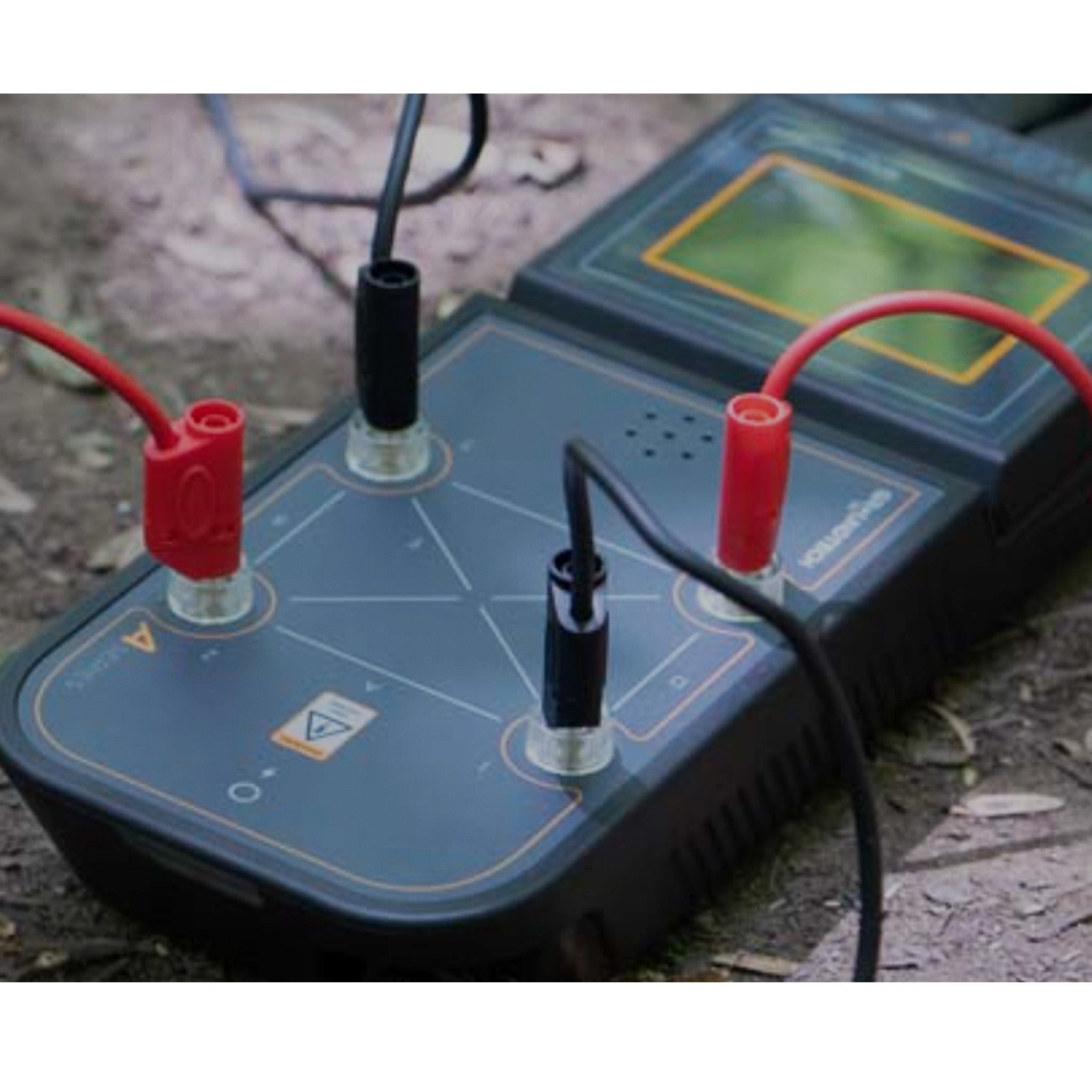

• Advanced Geo-Electric Detection: Programmed for ultra-deep subterranean mapping. Easily locate deep groundwater, hidden cavities, ancient burial chambers, and tunnels by scanning across four lines using both manual and automatic scanning configurations.
• Next-Gen MFS-3 Dual Sensor Technology: Features high-sensitivity gradiometer sensors (± 3000 µT) backed by a lightning-fast processor to drastically minimize scanning errors and increase depth accuracy.
• Incredible 20-Meter Depth Range: Reach depths of up to 20 meters (approx. 65 feet) using the 3D imaging system to locate targets far beyond the limits of traditional hobby metal detectors.
• 8 Comprehensive Scanning Modes: Equipped for any terrain with 3D Ground Scanning, Live Scanning, Pinpointer Function, Detector Quick Scan, Detector Advanced Scan, 3D Detector Scanning, Resistivity Automatic Scanning, and Resistivity Manual Scanning.
• Standalone Field Performance: No external smartphone or tablet required to start your survey. Set up configurations, switch modes, and view immediate color-coded graphic targets directly on the built-in HD color screen.
• Comprehensive 3D & 4D Analysis: Sync via Bluetooth 4.2 BLE to the G-Portal application (iOS & Android) or the Groundtech Suite to generate highly detailed 3D graphic models, isolate target shapes, and analyze soil anomalies.

Technical Specifications

• System Type: 3D Ground Scanner, Pulse Induction Metal Detector, & Geo-Electric System
• Sensor Technology: MFS-3 Dual Sensor Technology (Gradiometer) ± 3000 µT
• Detector Technology: Pulse Induction Technology (1 kHz frequency)
• Geo-Electric System Specs: 100v – 66mA output, 62 Hz, 50 sample interval
• Maximum 3D Scan Depth: Up to 20 meters (approx. 65 feet)
• CPU / Processor: High-speed 240 MHz CPU with a 12-bit A/D converter
• Display: Integrated HD color screen for real-time standalone use
• Wireless Connectivity: Bluetooth 4.2 BLE
• 3D Analysis Software: G-Portal Mobile App & Groundtech Suite Application
• Battery Type: 3.7 V Li-ion rechargeable battery
• Operating Time: Approx. 6 hours in Pulse Detector mode / Approx. 10 hours in Scanning and Resistivity modes
• Charging Interface: Type-C input (supports 25W fast charging adapters)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Multi-Language Support: 11 languages on-device / 25 languages via the mobile app
• Warranty: 2-Year Manufacturer Warranty

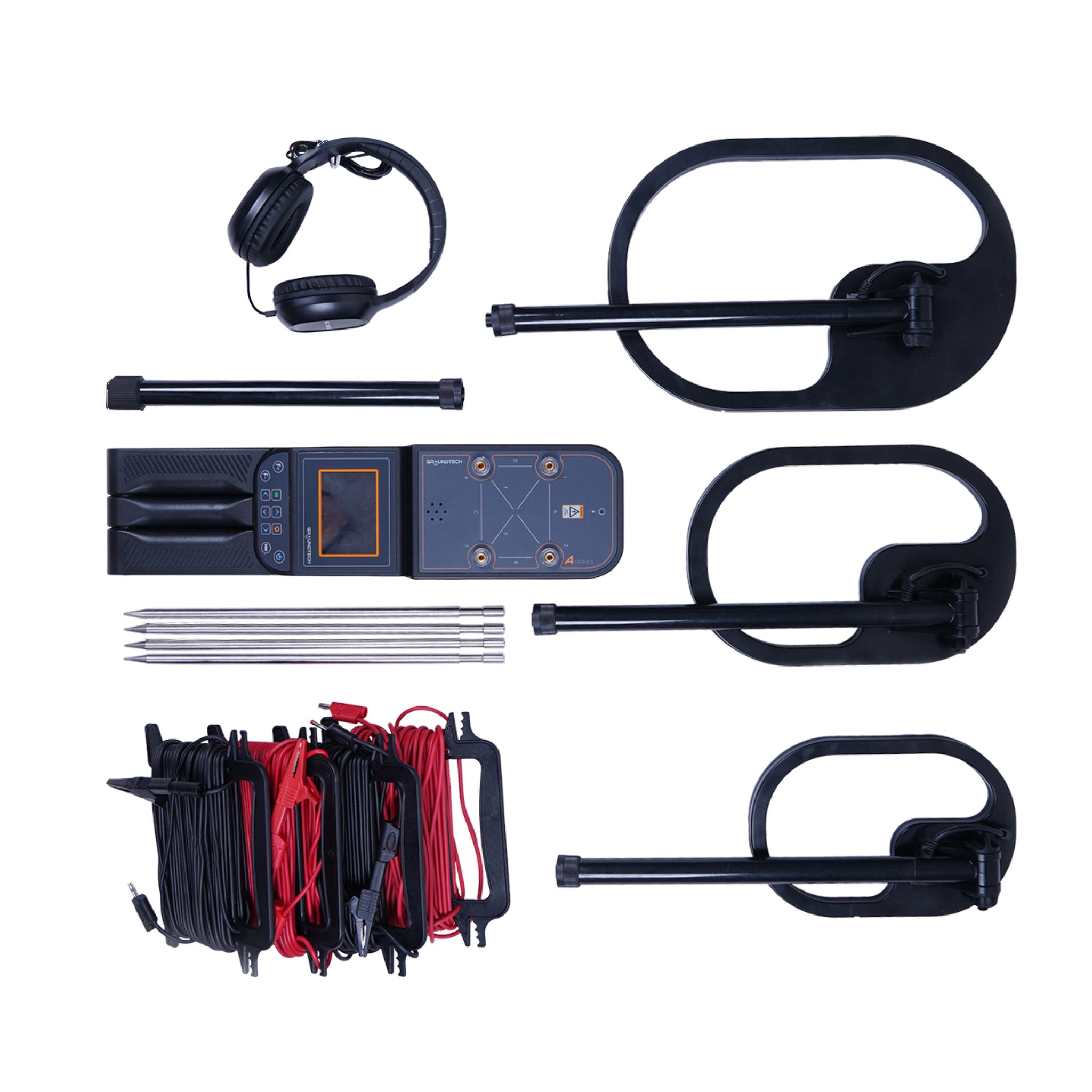

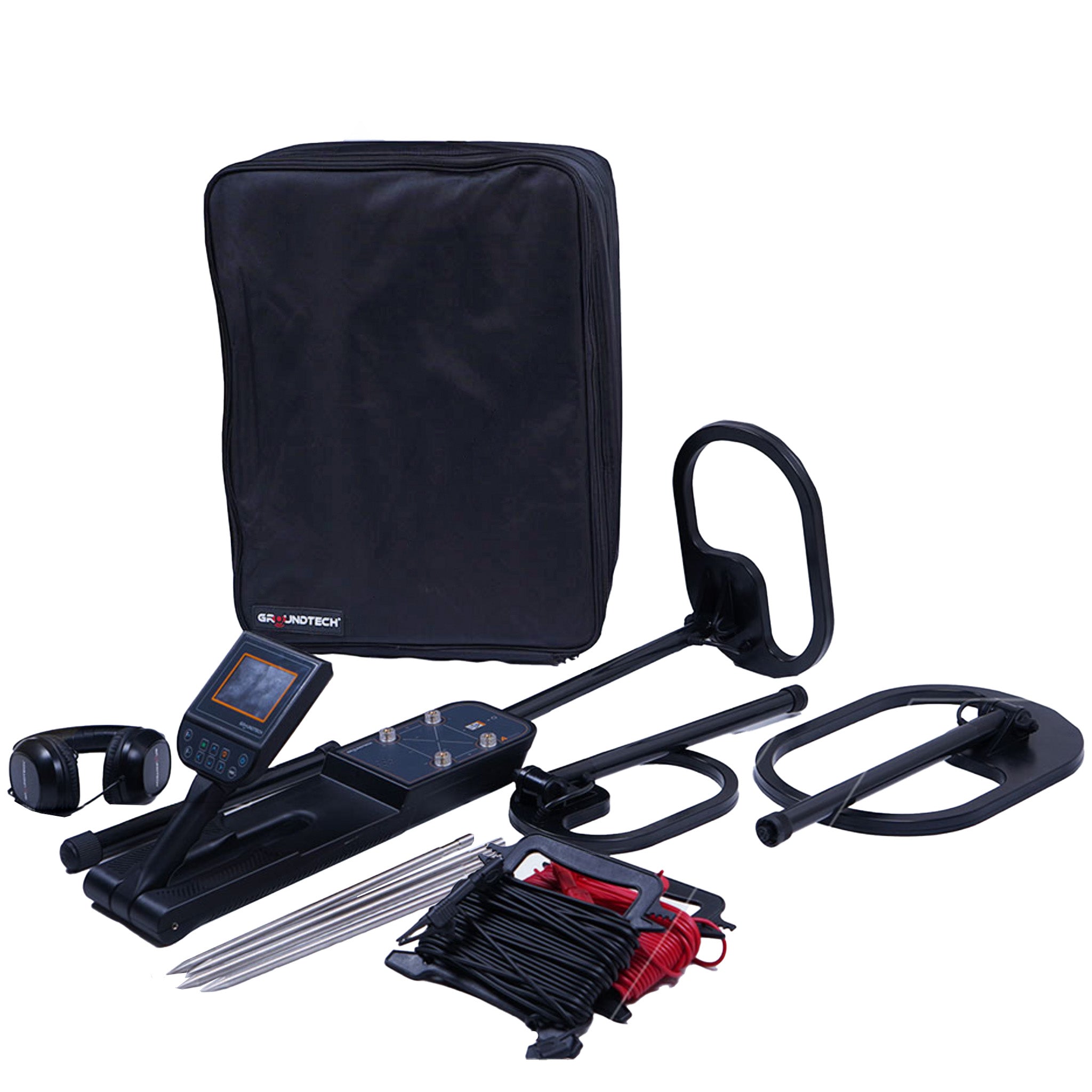

What’s Included in the Box?

• Groundtech A2 GEO Main Unit (with integrated HD color screen)
• MFS-3 Dual Sensor Module
• PiD25 Detector Search Coil
• PiD30 Detector Search Coil
• Geo-Electric System Accessories & Cable Assemblies
  •  Four conductive probes
  • Four 25m conductor cables
• Premium Audio Headset
• Type-C Fast Charging Adapter
• Heavy-Duty Field Carrying Bag
• User Manual & Official Warranty Documentation
